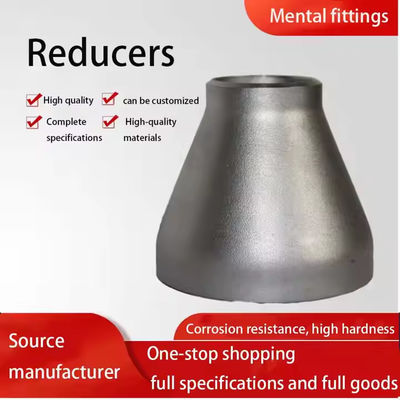

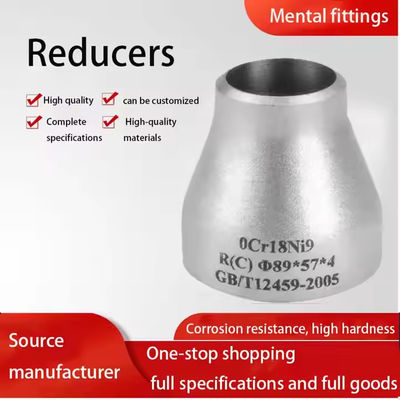

ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S

  • ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
  • ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
  • ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
  • ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
  • ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld 1/2 Inch to 24 Inch SCH40S SCH80S
Lugar de origem Xangai, China
Marca TOBO
Certificação ISO/TUV/SGS
Número do modelo Redutor de aço inoxidável
Quantidade de ordem mínima 1 unidade
Preço Negociável
Detalhes da embalagem Pacote de Envio Padrão
Tempo de entrega 15-30 dias de trabalho
Termos de pagamento T/T, União Ocidental
Habilidade da fonte 10 toneladas/mês
Detalhes do produto
Tipo Redutor Excêntrico, Redutor Concêntrico Material ASTM A403 WP316, WP316L
Faixa de tamanho 1/2 polegada a 24 polegadas (DN15-DN600) Espessura da Parede SCH40S, SCH80S, SCH10S, SCH160, STD, XS, XXS
Padrão ASME B16.9, MSS SP75, EN10253, DIN2605 Técnica Conformação a frio, solução recozida e decapada
Destacar

Eccentric Pipe Reducer

,

WP316L Butt Weld Reducer

,

Stainless Steel Reducer
Deixe um recado
Descrição de produto
ASTM A403 WP316/316L Stainless Steel Eccentric Reducer Butt Weld
Our ASTM A403 WP316/316L stainless steel eccentric reducers are precision-manufactured for butt weld connections in demanding industrial environments. The eccentric design with flat side up or flat side down installation prevents air pocket accumulation in horizontal piping systems. Grade 316L offers enhanced corrosion resistance with molybdenum content for chloride-rich environments.
Product Specifications
Type Eccentric Reducer, Concentric Reducer
Material ASTM A403 WP316, WP316L
Size Range 1/2 Inch to 24 Inch (DN15-DN600)
Wall Thickness SCH40S, SCH80S, SCH10S, SCH160, STD, XS, XXS
Form Seamless and Welded
Standard ASME B16.9, MSS SP75, EN10253, DIN2605
Technics Cold Forming, Solution Annealed and Pickled
Application Chemical Processing, Marine, Offshore, Oil and Gas
Dimension Chart (ASME B16.9 Eccentric Reducer)
DN NPS Large OD (mm) Small OD (mm) End to End H (mm)
25x20 1x3/4 33.7 26.9 51
40x25 1-1/2x1 48.3 33.7 64
50x32 2x1-1/4 60.3 42.4 76
65x50 2-1/2x2 73.0 60.3 89
80x50 3x2 88.9 60.3 89
100x65 4x2-1/2 114.3 73.0 102
125x100 5x4 141.3 114.3 127
150x100 6x4 168.3 114.3 140
200x125 8x5 219.1 141.3 152
250x150 10x6 273.0 168.3 178
300x200 12x8 323.9 219.1 203
350x250 14x10 355.6 273.0 330
400x300 16x12 406.4 323.9 356
Wall Thickness Schedule
Schedule Wall Thickness Range Typical Application
SCH10S Light Wall Low Pressure, General Service
SCH40S Standard Wall Medium Pressure Process Piping
SCH80S Extra Strong High Pressure, Corrosive Service
SCH160 Double Extra Strong Very High Pressure Applications
XXS Maximum Wall Extreme Pressure, Critical Service
Quality Features
  • Molybdenum-enhanced 316L for superior chloride corrosion resistance
  • Eccentric design eliminates vapor pocket formation in horizontal lines
  • ISO/TUV/SGS certified production with full material traceability
  • Available in both seamless and welded construction
  • Non-destructive testing available: UT, RT, PT upon request
  • Fast delivery within 15-30 workdays for stock and production orders
